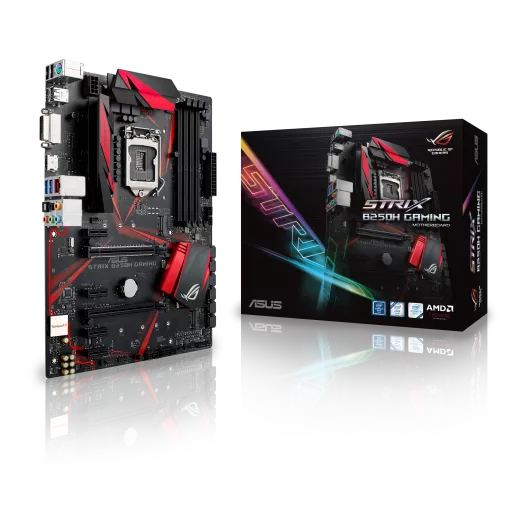

ASUS ROG STRIX B250H GAMING 6th/7th GEN MOTHERBOARD
- Intel LGA-1151 ATX B250H
- Gaming motherboard with SupremeFX S1220A audio codec
- Intel Gigabit LAN
- DDR4 2400MHz, dual M.2
- HDMI, DVI and SATA 6 Gbps
රු29,000.00
ROG STRIX B250H GAMING
Intel LGA-1151 ATX B250H Gaming motherboard with SupremeFX S1220A audio codec, Intel Gigabit LAN, DDR4 2400MHz, dual M.2, HDMI, DVI and SATA 6 Gbps
- The successor to Pro Gaming motherboards
- Best gaming audio – SupremeFX S1220A audio codec with dual headphone amplifiers for crystal-clear sound, plus intuitive Sonic Studio III and Sonic Radar III
- Gaming networking — Best-in-class Intel® Gigabit Ethernet for optimized LAN and online gaming experiences, plus surge-protecting LANGuard and the latest GameFirst IV technology
- Next-gen connectivity — Dual onboard M.2 slots for up to 32Gbps of PCIe bandwidth and Intel® Optane™ memory ready
- Patent-pending ASUS SafeSlot for enhanced PCIe retention and shearing resistance
Specifications
Chipset
Intel® B250
Memory
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Maximum shared memory of 1024 MB
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
– Supports HDMI with max. resolution 4096 x 2160 @ 24Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
1 x PCIe 3.0/2.0 x16 (x16 mode)
4 x PCIe 3.0/2.0 x1
Storage
Intel® B250 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*3
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2
6 x SATA 6Gb/s port(s)
LAN
Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology
Audio
– Sonic Studio III
– Supports up to 32-Bit/192kHz playback *4
ROG SupremeFX8-Channel High Definition Audio CODEC S1220A
– Dual Headphone Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality120dBSNR stereo playback outputand113dBSNR recording input
– SupremeFX Shielding Technology
Audio Feature :
– Optical S/PDIF out port(s) at back panel
– Sonic Radar III
USB Ports
Intel® B250 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board)
ROG Exclusive Features
ROG RAMCache II
ROG CloneDrive
GameFirst IV
ROG CPU-Z
Overwolf
Special Features
Fan Xpert 3
Performance Optimization :
Gamer´s Guardian:
– DRAM Overcurrent Protection
– Stainless Steel Back I/O
– Highly Durable components
– Digi+ VRM
– SafeSlot
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– ESD Guards
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
– ASUS Q-Shield
– ASUS Q-Slot
– ASUS Q-DIMM
– GPU Boost
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
Back I/O Ports
2 x USB 3.1 Gen 1 (blue)
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports
1 x AAFP connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
Accessories
1 x 10 in 1 ROG Cable Label(s)
ASUS Q-Shield
2 x M.2 Screw Package
User´s manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG Strix stickers
1 x Cable ties pack(s)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
Manageability
WfM2.0, DMI3.0, WOL by PME, PXE
Operating System
Windows® 8.1 64-bit *6
Windows® 7 32-bit *6
Windows® 7 64-bit *6
Windows® 10 64-bit
Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
ATX Form Factor
Note
*1 PCIe x16_2 slot shares bandwidth with PCIe x1_3 and PCIe x1_4 slots. When PCIe x1_3 and PCIe x1_4 slots are occupied, PCIe x16_2 slot runs at x2 mode.
*2 The M.2_1 socket shares SATA_1 port when using M.2 SATA mode device. Adjust BIOS settings to use a SATA device. M.2_1 slot shares bandwidth with PCIe x1_1 and PCIe x1_2 slots. When PCIe x1_1 and PCIe x1_2 slots are occupied, M.2_1 slot runs at x2 mode.
*3 The M.2_2 socket supports Intel® Optane™ Technology. Intel® Optane™ Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane™ memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
*4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
*5 ROG GameFirst IV is only available for Windows® 10/8.1 64-bit
*6 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
*2 The M.2_1 socket shares SATA_1 port when using M.2 SATA mode device. Adjust BIOS settings to use a SATA device. M.2_1 slot shares bandwidth with PCIe x1_1 and PCIe x1_2 slots. When PCIe x1_1 and PCIe x1_2 slots are occupied, M.2_1 slot runs at x2 mode.
*3 The M.2_2 socket supports Intel® Optane™ Technology. Intel® Optane™ Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane™ memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
*4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
*5 ROG GameFirst IV is only available for Windows® 10/8.1 64-bit
*6 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
